Timber Cladding: Examples of Horizontal Profiles

t&g with a 125mm face and flared channel

Download h1-125-face-t-and-g.skp   Download h1-125-face-t-and-g.skp

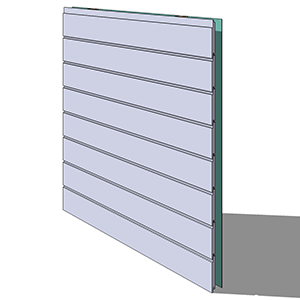

t&g with a 125mm face and square channel

Download h2-125-face-tandg.skp   Download h2-125-face-tandg.skp

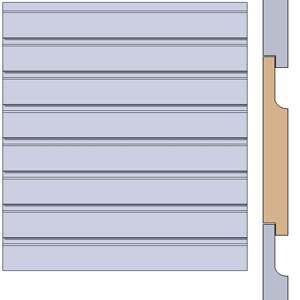

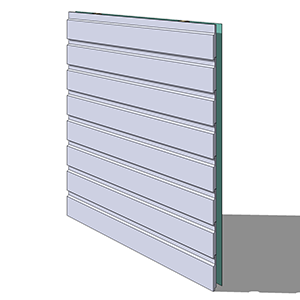

shiplap with a 135mm face and curved channel

Download h3-shiplap-sharp-curve-panel.skp   Download h3-shiplap-sharp-curve-panel.skp

shiplap with a 128mm face and wide rebate

Download h4-shiplap-grad-curve-panel.skp   Download h4-shiplap-grad-curve-panel.skp

open joint with a 126mm face

Download h5-rainscreen-126-face-panel.skp   Download h5-rainscreen-126-face-panel.skp

feather edge with a 125mm face

Download h6-feather-125-face-panel-2.skp   Download h6-feather-125-face-panel-2.skp

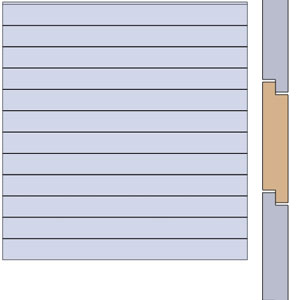

half-lap with a flush 87mm face

Download h9-half-lap-87-face-panel.skp   Download h9-half-lap-87-face-panel.skp

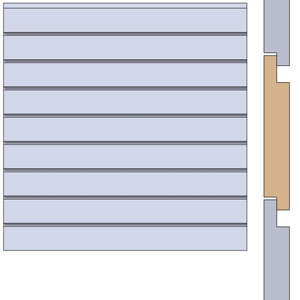

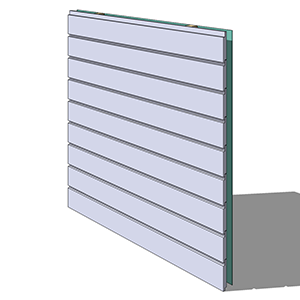

half-lap with a 112mm face and square channel

Download h10-half-lap-112-face-panel.skp   Download h10-half-lap-112-face-panel.skp

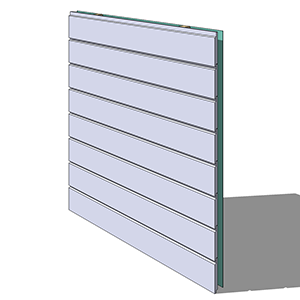

half-lap with a 137mm face and flared channel

Download h11-half-lap-137-face-panel.skp   Download h11-half-lap-137-face-panel.skp
