Timber Cladding: Support and Moisture control


The problem with moisture



• A ventilated cavity behind the cladding prevents the ingress of moisture into the wall fabric

• But some moisture can be driven into the cavity, and sometimes accross it

• Introducing ventilation to the cavity largely eliminates the problem

• The free flow of air from the bottom to the top of the cavity should not be interrupted

• The design of the cladding support structure should expedite ventilation



Support for horizontal and vertical cladding formats to ensure air flow

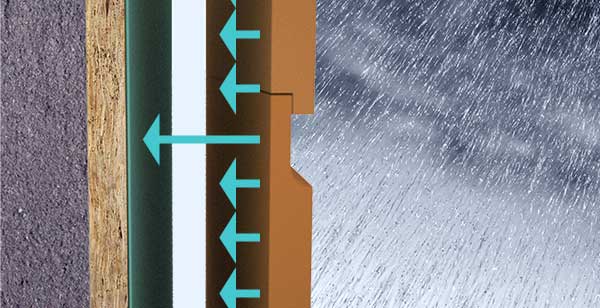

air flow in cavities behind cladding

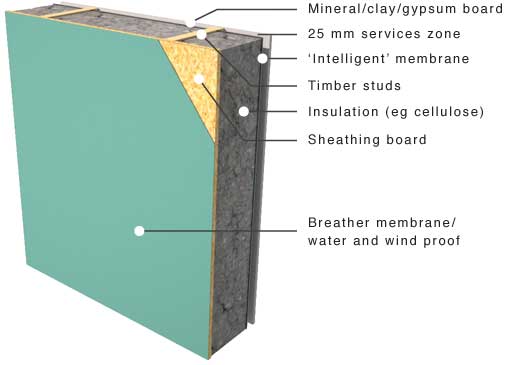

Example of a wall element before application of cladding




Horizontal cladding and support



Vertical cladding and support



Vertical board-on-board cladding and support

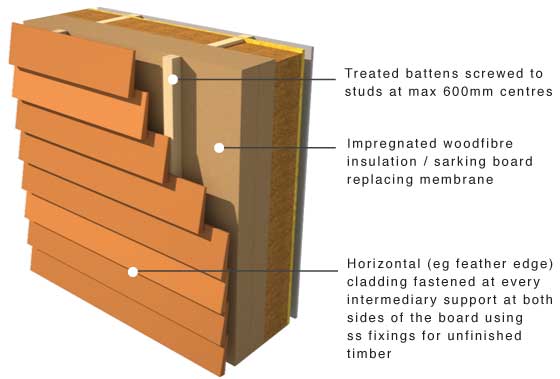

Horizontal cladding fixed to impregnated wood-fibre insulation
